Kamailio Bytes: Stripping SIP Multipart Bodies

For some calls in (such as some IMS emergency calls) you’ll get MIME Multipart Media Encapsulation as the SIP body, as the content-type set to:

Content-Type: multipart/mixed;boundary=968f194ab800ab27

If you’re used to dealing with SIP, you’d expect to see:

Content-Type: application/sdp

This Content-Type multipart/mixed;boundary is totally valid in SIP, in fact RFC 5261 (Message Body Handling in the Session Initiation Protocol (SIP)) details the use of MIME in SIP, and the Geolocation extension uses this, as we see below from a 911 call example.

But while this extension is standardised, and having your SIP Body containing multipart MIME is legal, not everything supports this, including the FreeSWITCH bridge module, which just appends a new SDP body into the Mime Multipart

Site note: I noticed FreeSWITCH Bridge function just appends the new SIP body in the multipart MIME, leaving the original, SDP:

Okay, so how do we replace the MIME Multipart SIP body with a standard SDP?

Well, with Kamalio’s SDP Ops Module, it’s fairly easy:

#If the body is multipart then strip it and replace with a single part
if (has_body("multipart/mixed")) {
	xlog("This has a multipart body");
	if (filter_body("application/sdp")) {
		remove_hf("Content-Type");
		append_hf("Content-Type: application/sdp\r\n");
	} else {
		xlog("Body part application/sdp not found\n");
		}
}

I’ve written about using SDPops to modify SDP before.

And with that we’ll take an SIP message like the one shown on the left, and when relayed, end up with the message on the right:

Simple fix, but saved me having to fix the fault in FreeSWITCH.

RTPengine – Installation & Configuration (Ubuntu 20.04 / 22.04)

I wrote a post a few years back covering installing RTPengine on Ubuntu (14.04 / 18.04) but it doesn’t apply in later Ubuntu releases such as 20.04 and 22.04.

To make everyone’s lives easier; David Lublink publishes premade repos for Ubuntu Jammy (22.04) & Focal (20.04).

Note: It looks like Ubuntu 23.04 includes RTPengine in the standard repos, so this won’t be needed in the future.

sudo add-apt-repository ppa:davidlublink/rtpengine
sudo apt update
sudo apt-get install ngcp-rtpengine

The Ambient Capabilities in the systemctl file bit me,

Commenting out :

#AmbientCapabilities=CAP_NET_ADMIN CAP_SYS_NICE

In /lib/systemd/system/ngcp-rtpengine-daemon.service and then reloading the service and restarting and I was off and running:

systemctl daemon-reload
systemctl restart rtpengine

Getting it Running

Now we’ve got RTPengine installed let’s setup the basics,

There’s an example config file we’ll copy and edit:

vi /etc/rtpengine/rtpengine.conf

We’ll uncomment the interface line and set the IP to the IP we’ll be listening on:

Once we’ve set this to our IP we can start the service:

systemctl restart rtpengine

All going well it’ll start and rtpengine will be running.

You can learn about all the startup parameters and what everything in the config means in the readme.

Want more RTP info?

If you want to integrate RTPengine with Kamailio take a look at my post on how to set up RTPengine with Kamailio.

For more in-depth info on the workings of RTP check out my post RTP – More than you wanted to Know

HOMER API in Python

We’re doing more and more network automation, and something that came up as valuable to us would be to have all the IPs in HOMER SIP Capture come up as the hostnames of the VM running the service.

Luckily for us HOMER has an API for this ready to roll, and best of all, it’s Swagger based and easily documented (awesome!).

(Probably through my own failure to properly RTFM) I was struggling to work out the correct (current) way to Authenticate against the API service using a username and password.

Because the HOMER team are awesome however, the web UI for HOMER, is just an API client.

This means to look at how to log into the API, I just needed to fire up Wireshark, log into the Web UI via my browser and then flick through the packets for a real world example of how to do this.

Homer Login JSON body as seen by Wireshark

In the Login action I could see the browser posts a JSON body with the username and password to /api/v3/auth

{"username":"admin","password":"sipcapture","type":"internal"}

And in return the Homer API Server responds with a 201 Created an a auth token back:

Now in order to use the API we just need to include that token in our Authorization: header then we can hit all the API endpoints we want!

For me, the goal we were setting out to achieve was to setup the aliases from our automatically populated list of hosts. So using the info above I setup a simple Python script with Requests to achieve this:

import requests
s = requests.Session()

#Login and get Token
url = 'http://homer:9080/api/v3/auth'
json_data = {"username":"admin","password":"sipcapture"}
x = s.post(url, json = json_data)
print(x.content)
token = x.json()['token']
print("Token is: " + str(token))


#Add new Alias
alias_json = {
          "alias": "Blog Example",
          "captureID": "0",
          "id": 0,
          "ip": "1.2.3.4",
          "mask": 32,
          "port": 5060,
          "status": True
        }

x = s.post('http://homer:9080/api/v3/alias', json = alias_json, headers={'Authorization': 'Bearer ' + token})
print(x.status_code)
print(x.content)


#Print all Aliases
x = s.get('http://homer:9080/api/v3/alias', headers={'Authorization': 'Bearer ' + token})
print(x.json())

And bingo we’re done, a new alias defined.

We wrapped this up in a for loop for each of the hosts / subnets we use and hooked it into our build system and away we go!

With the Homer API the world is your oyster in terms of functionality, all the features of the Web UI are exposed on the API as the Web UI just uses the API (something I wish was more common!).

Using the Swagger based API docs you can see examples of how to achieve everything you need to, and if you ever get stuck, just fire up Wireshark and do it in the Homer WebUI for an example of how the bodies should look.

Thanks to the Homer team at QXIP for making such a great product!

Kamailio Bytes: Adding Prometheus + Grafana to Kamailio

I recently fell in love with the Prometheus + Grafana combo, and I’m including it in as much of my workflow as possible, so today we’ll be integrating this with another favorite – Kamailio.

Why would we want to integrate Kamailio into Prometheus + Grafana? Observability, monitoring, alerting, cool dashboards to make it look like you’re doing complicated stuff, this duo have it all!

I’m going to assume some level of familiarity with Prometheus here, and at least a basic level of understanding of Kamailio (if you’ve never worked with Kamailio before, check out my Kamailio 101 Series, then jump back here).

So what will we achieve today?

We’ll start with the simple SIP Registrar in Kamailio from this post, and we’ll add on the xhttp_prom module, and use it to expose some stats on the rate of requests, and responses sent to those requests.

So to get started we’ll need to load some extra modules, xhttp_prom module requires xhttp (If you’d like to learn the basics of xhttp there’s also a Kamailio Bytes – xHTTP Module post covering the basics) so we’ll load both.

xHTTP also has some extra requirements to load, so in the top of our config we’ll explicitly specify what ports we want to bind to, and set two parameters that control how Kamailio handles HTTP requests (otherwise you’ll not get responses for HTTP GET requests).

listen=tcp:0.0.0.0:9090
listen=tcp:0.0.0.0:5060
listen=udp:0.0.0.0:5060

http_reply_parse=yes
tcp_accept_no_cl=yes

Then where you load all your modules we’ll load xhttp and xhttp_prom, and set the basic parameters:

loadmodule "xhttp.so"
loadmodule "xhttp_prom.so"

# Define two counters and a gauge
modparam("xhttp_prom", "xhttp_prom_stats", "all")

By setting xhttp_prom module to expose all stats, this exposes all of Kamailio’s internal stats as counters to Prometheus – This means we don’t need to define all our own counters / histograms / gauges, instead we can use the built in ones from Kamailio. Of course we can define our own custom ones, but we’ll do that in our next post.

Lastly we’ll need to add an event route to handle HTTP requests to the /metrics URL:

event_route[xhttp:request] {
	xlog("Got a request!");
	xlog("$ru");
	$var(xhttp_prom_root) = $(hu{s.substr,0,8});
	if ($var(xhttp_prom_root) == "/metrics") {
			xlog("Called metrics");
			prom_dispatch();
			xlog("prom_dispatch() called");
			return;
	} else
		xhttp_reply("200", "OK", "text/html",
        		"<html><body>Wrong URL $hu</body></html>");
}

Restart, and browse to the IP of your Kamailio instance (mine is 10.01.23) port 9090 /metrics and you’ll get something like this:

Kamailio metrics endpoing used by Prometheus

That my friends, is the sort of data that Prometheus gobbles up, so let’s point Prometheus at it and see what data we get back.

Over on my Prometheus server I’ve edited /etc/prometheus/prometheus.yml to target our new Prometheus endpoint.

  - job_name: "kamailo"
    static_configs:
      - targets: ["10.0.1.23:9090"]
    honor_timestamps: false

So how can we see this data? Well first off if we log into Prometheus we can see the data flowing in:

If we throw some SIP REGISTER traffic at our Kamailio instance and check on the kamailio_registrar_accepted_regs stat we can see our registrations.

After a few clicks in Grafana we can run some graphs for this data too:

So that’s it, Kamailio’s core stats are now exposed to Prometheus, and we can render this information in Grafana.

There’s a copy of the full code used here available in the Github, and in our next post we’ll look at defining our own metrics in Kamailio and then interacting with them.

IMS DNS Failing

Kamailio, IMS & DNS Headches

I’m sure I’ve ranted about the importance of DNS in IMS networks in the past on here already.

Recently I was rebuilding a P-CSCF and kept getting an error saying that the DNS was failing to resolve:

 4(5993) CRITICAL: <core> [core/dns_cache.c:3136]: dns_srv_sip_resolve(): unknown proto 0
 4(5993) ERROR: tm [ut.h:284]: uri2dst2(): failed to resolve "ims.mnc001.mcc001.3gppnetwork.org" :bug - critical error (-13)
 4(5993) ERROR: tm [t_fwd.c:1759]: t_forward_nonack(): failure to add branches
 4(5993) ERROR: sl [sl_funcs.c:414]: sl_reply_error(): stateless error reply used: Unresolvable destination (478/SL)

This was a rebuild, another P-CSCF was running fine and handling traffic with the same DNS server set.

I checked the netplan config and confirmed the DNS server was set correctly.

If I did an nslookup on the address that was failing to resolve – pointing it at the correct DNS server, the A & SRV records came back OK, and everything was fine.

Stranger still, after clearing the DNS Cache, and running a packet capture, I couldn’t see any DNS queries at all….

The problem? Kamailio uses resolv.conf by default on Ubuntu Server, and that was pointing to localhost.

After updating resolv.conf to point to the DNS server handling the IMS domains, I was good to go again.

A super valuable resource for all things DNS & Kamailio is this doc.

FreeSWITCH, Kamailio & IMS Extensions

Recently I’ve been doing some work with FreeSWITCH as an IMS Conference Factory, I’ve written a bit about it before in this post on using FreeSWITCH with the AMR codec.

Pretty early on in my testing I faced a problem with subsequent in-dialog responses, like re-INVITEs used for holding the calls.

Every subsequent message, was getting a “420 Bad Extension” response from FreeSWITCH.

So what didn’t it like and why was FreeSWITCH generating 420 Bad Extension Responses to these subsequent messages?

Well, the “Extensions” FreeSWITCH is referring to are not extensions in the Telephony sense – as in related to the Dialplan, like an Extension Number to identify a user, but rather the Extensions (as in expansions) to the SIP Protocol introduced for IMS.

The re-INVITE contains a Require header with sec-agree which is a SIP Extension introduced for IMS, which FreeSWITCH does not have support for, and the re-INVITE says is required to support the call (Not true in this case).

Using a Kamailio based S-CSCF means it is easy to strip these Headers before forwarding the requests onto the Application Server, which is what I’ve done, and bingo, no more errors!

Kamailio Bytes – Using Rtimer to run Jobs

Recently I was working on a project that required Kamailio to constantly re-evaluate something, and generate a UAC request if the condition was met.

There’s a few use cases for this: For example you might want to get Kamailio to constantly check the number of SIP registrations and send an alert if they drop below a certain number. If a subscriber drops out in that their Registration just expires, there’s no SIP message that will come in to tell us, so we’d never be able to trigger something in the normal Kamailio request_route.

Of you might want to continually send a SIP MESSAGE to pop up on someone’s phone to drive them crazy. That’s what this example will focus on.

This is where the rtimer module comes in. You can define the check in a routing block, and then

modparam("rtimer", "timer", "name=ta;interval=60;mode=1;")
modparam("rtimer", "exec", "timer=ta;route=SendMessage")

route[SendMessage] {
    xlog("Sending annoying message");
    $uac_req(method)="MESSAGE";
    $uac_req(ruri)="sip:10.0.1.5:5060";
    $uac_req(furi)="sip:Annoyatron 2000";
    $uac_req(turi)="sip:thisphone";
    $uac_req(hdrs)="Subject: Hello\r\n";
    $uac_req(hdrs)=$uac_req(hdrs) + "Content-Type: text/plain\r\n";
    $uac_req(body)="Hi Buddy. Just here to irritate you.";
    $uac_req(evroute)=1;
    $uac_req_send();

}

Using Docker to develop SIP solutions with Kamailio

VoIP networks are often large beasts, with lots of moving parts; carrier links, SBCs, application servers, etc.

While writing the other Kamailio tutorials on this blog I often find I’m spinning up several VMs to act as different parts of the network, for example in the posts on the Dispatcher module I needed to have 3 VMs to show it in action.

Instead of going to all the effort of creating VMs (or running Ansible playbooks) we can use Docker and docker-compose to create a test environment with multiple Asterisk instances to dispatch traffic to from Kamailio.

I covered the basics of using Kamailio with Docker in this post, which runs a single Kamailio instance inside Docker with a provided config file, but in this post we’ll use docker-compose to run multiple Asterisk instances and setup Kamailio to dispatch traffic to them.

I am a big Kubernetes fan, and yes, all this can be done in Kubernetes, and would be a better fit for a production environment, but for a development environment it’s probably overkill.

Like in the first post that covered Kamailio and Docker we’ll start with a Dockerfile to create the config we want.
The Dockerfile is largely unchanged from my original post on Docker and Kamailio, for the Kamailio config in this example I’m using Dispatcher with a flat text file of the targets to dispatch to (dispatcher.list), so I’ll include a command to copy the two config files into the Container when the image is created in the Dockerfile:

#Copy the config file onto the Filesystem of the Docker instance
COPY dispatcher.list /etc/kamailio/
COPY kamailio.cfg /etc/kamailio/

The Kamailio config we’re using is very similar to the Dispatcher example but with a few minor changes to the timers and setting it to use the Dispatcher data from a text file instead of a database. If you have a look at the contents of dispatcher.list you’ll see three entries; dispatcher_w_docker_asterisk_1, dispatcher_w_docker_asterisk_2 & dispatcher_w_docker_asterisk_3. These will be the hostnames of the 3 Asterisk instances we’ll create.

Next up we’ll take a look at the docker-compose file, which defines how our environment will be composed, and defines which containers will be run

The docker-compose file contains definitions about the Containers we want to run, for this example we’ll run several Asterisk instances and a single Kamailio instance.

I’m using a Docker image for Asterisk from Andrius Kairiukstis to deploy Asterisk, running a default config, so we’ll start our docker-compose file by defining a service called “asterisk” using Andrius’ image:

services:
   asterisk:
     image: andrius/asterisk
     deploy:
       mode: replicated
       replicas: 6

The replicas: 6 parameter is ignored by standard docker-compose up command, but will be used if you’re using Docker swarm, otherwise we’ll manually set the number of replicas when we run the command.

So with that defined let’s define our Kamailio service;

services:
   asterisk:
     image: andrius/asterisk
     deploy:
       mode: replicated
       replicas: 6
   kamailio_dispatcher:
     depends_on:
       - asterisk
     build:
      context: .
      dockerfile: Dockerfile
     ports:
       - "5060:5060/udp"
     restart: always

That will build Kamailio from our Dockerfile and expose port 5060,

We can run the docker-compose file with 3 replicas by running:

nick@oldfaithful:kamailio-101-tutorial/Docker_examples/Dispatcher_w_Docker$ docker-compose up --force-recreate --build --scale asterisk=3

Next if we run docker-ps we can see the running instances, the single Kamailio and the 3 Asterisk instances:

nick@oldfaithful:kamailio-101-tutorial/Docker_examples/Dispatcher_w_Docker$ docker ps

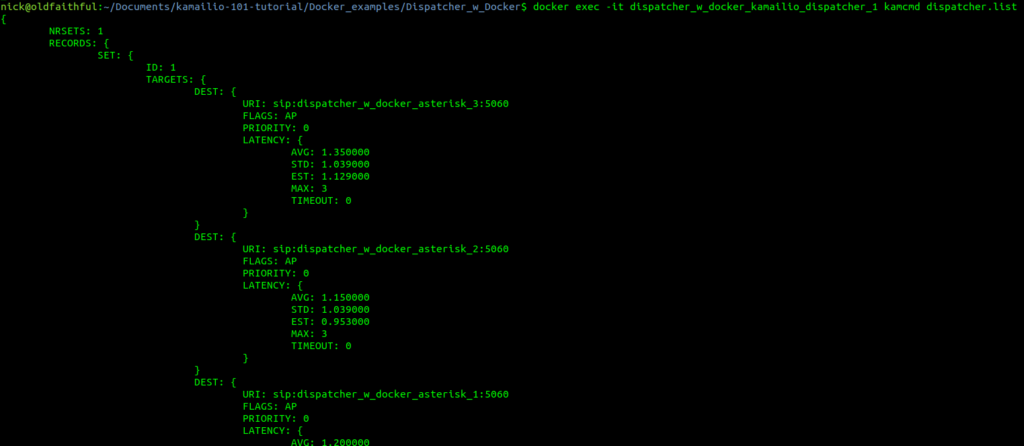

We can also query Kamailio to see how it’s Dispatcher table is looking and confirm it can reach each of our 3 instances:

nick@oldfaithful:kamailio-101-tutorial/Docker_examples/Dispatcher_w_Docker$ docker exec -it dispatcher_w_docker_kamailio_dispatcher_1 kamcmd dispatcher.list

Kamailio Bytes – OnReply Route

So far with most of our discussions about Kamailio we’ve talked about routing the initial SIP request (INVITE, REGISTER, SUBSCRIBE, etc), but SIP is not a one-message protocol, there’s a whole series of SIP messages that go into a SIP Dialog.

Sure the call may start with an INVITE, but there’s the 180 RINGING, the 200 OK and the ACK that go into getting the call actually established, and routing these in-dialog messages is just as important as routing the first INVITE.

When we’ve talked about SIP routing it’s all happened in the request_route {} block:

request_route {
        xlog("Received $rm to $ru - Forwarding");
        append_hf("X-Proxied: You betcha\r\n");
        #Forward to new IP
        forward("192.168.1.110");
}

In the example above we statelessly forward any initial requests to the IP 192.168.1.110.

All the routing from that point on happens using the standard RFC3261 in-dialog routing using the Route headers.

We can add an onreply_route{} block to handle any replies from 192.168.1.110 back to the originator.

But why would we want to?

Some simple answers would be to do some kind of manipulation to the message – say to strip a Caller ID if CLIP is turned off, or to add a custom SIP header containing important information, etc.

onreply_route{
        xlog("Got a reply $rs");
        append_hf("X-Proxied: For the reply\r\n");
}

Let’s imagine a scenario where the destination our SIP proxy is relaying traffic to (192.168.1.110) starts responding with 404 error.

We could detect this in our onreply_route{} and do something about it.

onreply_route{
        xlog("Got a reply $rs");
        if($rs == 404) {
                #If remote destination returns 404
                xlog("Got a 404 for $rU");
                #Do something about it
        }
}

In the 404 example if we were using Dispatcher it’s got easily accessed logic to handle these scenarios a bit better than us writing it out here, but you get the idea.

There are a few other special routes like onreply_route{}, failure routes and event routes, etc.

Hopefully now you’ll have a better idea of how and when to use onreply_route{} in Kamailio.

Kamailio Bytes – Gotchas with Kamailio as an Asterisk Load Balancer

How do I make Kamailio work with Asterisk?

It’s a seemingly simple question, the answer to which is – however you want, sorry if that’s not a simple answer.

I’ve talked about the strengths and weaknesses of Kamailio and Asterisk in my post Kamailio vs Asterisk, so how about we use them to work together?

The State of Play

So before we go into the nitty gritty, let’s imagine we’ve got an Asterisk box with a call queue with Alice and Bob in it, set to ring those users if they’re not already on a call.

Each time a call comes in, Asterisk looks at who in the queue is not already on a call, and rings their phone.

Now let’s imagine we’re facing a scenario where the single Asterisk box we’ve got is struggling, and we want to add a second to share the load.

We do it, and now we’ve got two Asterisk boxes and a Kamailio load balancer to split the traffic between the two boxes.

Now each time a call comes in, Kamailio sends the SIP INVITE to one of the two Asterisk boxes, and when it does, that Asterisk box looks at who is in the queue and not already on a call, and then rings their phone.

Let’s imagine a scenario where a Alice & Bob are both on calls on Asterisk box A, and another call comes in this call is routed to Asterisk box B. Asterisk box B looks at who is in the queue and who is already on a call, the problem is Alice and Bob are on calls on Asterisk box A, so Asterisk box B doesn’t know they’re both on a call and tries to ring them.

We have a problem.

Scaling stateful apps is a real headache,

So have a good long hard think about how to handle these issues before going down this path!

Kamailio Bytes – UAC – Authenticate Outbound Calls

Sometimes you need Kamailio to serve as a User Agent Client, we covered using UAC to send SIP REGISTER messages and respond with the authentication info, but if you find you’re getting 401 or 407 responses back when sending an INVITE, you’ll need to use the UAC module, specifically the uac_auth() to authenticate the INVITE,

When Kamailio relays an INVITE to a destination, typically any replies / responses that are part of that dialog will go back to the originator using the Via headers.

This would be fine except if the originator doesn’t know the user name and password requested by the carrier, but Kamailio does,

Instead what we need Kamailio to do is if the response to the INVITE is a 401 Unauthorised Response, or a 407 Proxy Authentication required, intercept the request, generate the response to the authentication challenge, and send it to the carrier.

To do this we’ll need to use the UAC module in Kamailio and set some basic params:

loadmodule "uac.so"
modparam("uac", "reg_contact_addr", "10.0.1.252:5060")
modparam("uac", "reg_db_url", DBURL)
modparam("uac","auth_username_avp","$avp(auser)")
modparam("uac","auth_password_avp","$avp(apass)")
modparam("uac","auth_realm_avp","$avp(arealm)")

Next up when we relay the INVITE (using the Transaction module because we need the response to be transaction stateful).

Before we can call the t_relay() command, we need to specify a failure route, to be called if a negative response code comes back, we’ll use one called TRUNKAUTH and tell the transaction module that’s the one we’ll use by adding t_on_failure(“TRUNKAUTH”);

	$du = "sip:sip.nickvsnetworking.com:5060";
	if(is_method("INVITE")) {
		t_on_failure("TRUNKAUTH");
		t_relay();
		exit;
	   }

What we’ve done is specified to rewrite the destination URI to sip.nickvsnetworking.com, if the request type is an INVITE, it’ll load a failure route called TRUNKAUTH and proxy the request with the transaction module to sip.nickvsnetworking.com.

What we get is a 401 response back from our imaginary carrier, and included in it is a www-auth header for authentication.

To catch this we’ll create an on failure route named “TRUNKAUTH”

failure_route[TRUNKAUTH] {
    xlog("trunk auth");
    }

We’ll make sure the transaction hasn’t been cancelled, and if it has bail out (no point processing subsequent requests on a cancelled dialog).

failure_route[TRUNKAUTH] {
    xlog("trunk auth");
    if (t_is_canceled()) {
        exit;
    }

And determine if the response code is a 401 Unauthorised Response, or a 407 Proxy Authentication required (Authentication requests from our upstream carrier):

failure_route[TRUNKAUTH] {
    xlog("trunk auth");
    if (t_is_canceled()) {
        exit;
    }
	xlog("Checking status code");
    if(t_check_status("401|407")) {
	xlog("status code is valid auth challenge");
    }
}

Next we’ll define the username and password we want to call upon for this challenge, and generate an authentication response based on these values using the uac_auth() command,

failure_route[TRUNKAUTH] {
    xlog("trunk auth");
    if (t_is_canceled()) {
        exit;
    }
	xlog("Checking status code");
    if(t_check_status("401|407")) {
	xlog("status code is valid auth challenge");
        $avp(auser) = "test";
        $avp(apass) = "test";
        uac_auth();

    }
}

Then finally we’ll relay that back to the carrier with our www-auth header populated with the challenge response;

failure_route[TRUNKAUTH] {
    xlog("trunk auth");
    if (t_is_canceled()) {
        exit;
    }
	xlog("Checking status code");
    if(t_check_status("401|407")) {
	xlog("status code is valid auth challenge");
        $avp(auser) = "test";
        $avp(apass) = "test";
        uac_auth();
	xlog("after uac_auth");
        t_relay();
        exit;
    }
}

And done!

We can get this data from the UAC database so we don’t need to load these values directly into our config file too using the SQLops module.

As always I’ve put the running code example on my GitHub.

Kamailio Bytes – Docker and Containers

I wrote about using Ansible to automate Kamailio config management, Ansible is great at managing VMs or bare metal deployments, but for Containers using Docker to build and manage the deployments is where it’s at.

I’m going to assume you’ve got Docker in place, if not there’s heaps of info online about getting started with Docker.

The Dockerfile

The Kamailio team publish a Docker image for use, there’s no master branch at the moment, so you’ve got to specify the version; in this case kamailio:5.3.3-stretch.

Once we’ve got that we can start on the Dockerfile,

For this example I’m going to include

#Kamailio Test Stuff
FROM kamailio/kamailio:5.3.3-stretch

#Copy the config file onto the Filesystem of the Docker instance
COPY kamailio.cfg /etc/kamailio/

#Print out the current IP Address info
RUN ip add

#Expose port 5060 (SIP) for TCP and UDP
EXPOSE 5060
EXPOSE 5060/udp

Once the dockerfile is created we can build an image,

docker image build -t kamtest:0.1 .

And then run it,

docker run kamtest:0.1

Boom, now Kamailio is running, with the config file I pushed to it from my Dockerfile directory,

Now I can setup a Softphone on my local machine and point it to the IP of the Docker instance and away we go,

Where the real power here comes in is that I can run that docker run command another 10 times, and have another 10 Kamailio instannces running.

Tie this in with Kubernetes or a similar platform and you’ve got a way to scale and manage upgrades unlike anything you’d get on Bare Metal or VMs.

I’ve uploaded a copy of my Dockerfile for reference, you can find it on my GitHub.

Kamailio Proxy-CSCF Pull

I had a few headaches getting the example P-CSCF example configs from the Kamailio team to run, recent improvements with the IPsec support and code evolution meant that the example config just didn’t run.

So, after finally working out the changes I needed to make to get Kamailio to function as a P-CSCF, I took the plunge and made my first pull request on the Kamailio project.

And here it is!

https://github.com/kamailio/kamailio/pull/2203

It’s now in the master branch, so if you want to setup a P-CSCF using Kamailio, give it a shot, as the example config finally works!

Kamailio Bytes – http_client

I’ve touched on the http_client module in Kamailio in the past, and I’ve talked about using Kamailio as an HTTP server.

Today I thought I’d cover a simple use case – running an HTTP get from Kamailio and doing something with the output.

The http_client does what it sounds – Acts as an HTTP client to send HTTP GET and POST requests.

The use cases for this become clear quite quickly, you could use http_client to request credit from an accounting server via it’s API, get the latest rate to a destination from a supplier, pull weather data, etc, etc.

Let’s take a very simple example, we’ll load http_client by adding a loadmodule line:

...
loadmodule "http_client.so"
...

Next I’ve put together a very simple request_route block that requests a HTTP file from a web server and sends the response to a SIP client:

####### Routing Logic ########


/* Main SIP request routing logic
 * - processing of any incoming SIP request starts with this route
 * - note: this is the same as route { ... } */
request_route {

        xlog("Got request");
        http_client_query("https://nickvsnetworking.com/utils/curl.html", "", "$var(result)");
        xlog("Result is $var(result)");
        sl_reply("200", "Result from HTTP server was  $var(result)");
}

Using the http_client_query() function we’re able to query a HTTP server,

We’ll query the URL https://nickvsnetworking.com/utils/curl.html and store the output to a variable called result.

If you visit the URL you’ll just get a message that says “Hello there“, that’s what Kamailio will get when it runs the http_client function.

Next we print the result using an xlog() function so we can see the result in syslog,

Finally we send a stateless reply with the result code 200 and the body set to the result we got back from the server.

We can make this a bit more advanced, using HTTP Post we can send user variables and get back responses.

The http_client module is based on the ubiquitous cURL tool, that many users will already be familiar with.

You can find a full copy of my running code on GitHub.

Kamailio Bytes – Multiple Kamailio Instances on a Single Box

For whatever reason you might want to run multiple Kamailio instances on the same machine.

In my case I was working on an all-in-one IMS box, which needed the P-CSCF, I-CSCF and S-CSCF all in the one box.

init.d File

As you probably already know, all the startup scripts for each service/daemon live in the /etc/init.d directory.

We’ll start by copying the existing init.d file for kamailio:

cp /etc/init.d/kamailio /etc/init.d/kamailio1

Next up we’ll edit it to reflect the changes we want made.

You only really need to change the DEFAULTS= parameter, but you may also want to update the description, etc.

DEFAULTS=/etc/default/kamailio1

The CFGFILE parameter we can update later in the defaults file or specify here.

Defaults File

Next up we’ll need to create a defaults file where we specify how our instance will be loaded,

Again, we’ll copy an existing defaults file and then just edit it.

cp /etc/default/kamailio /etc/default/kamailio1

The file we just created from the copy will need to match the filename we specified in the init.d file for DEFAULTS=

In my case the filename is kamailio1

In here I’ll need to at minimum change the CFGFILE= parameter to point to the config file for the Kamailio instance we’re adding.

In this case the file is called kamailio1.cfg in /etc/kamailio/

For some Ubuntu systems you’re expected to reload the daemons:

systemctl daemon-reload

Starting / Running

Once you’ve done all this you can now try and start your instance using /etc/init.d/kamailio1 start

For my example startup failed as I haven’t created the config file for kamailio1.cfg

So I quickly created a config file and tried to start my service:

/etc/init.d/kamailio1 restart

And presto, my service is running,

I can verify all is running through ps aux:

ps aux | grep kamailio1

Just keep in mind if you want to run multiple instances of Kamailio, you can’t have them all bound to the same address / port.

This also extends to tools like kamcmd which communicate with Kamailio over a socket, again you’d need to specify unique ports for each instance.

Kamailio Bytes – SIP over TLS (SIPS)

It’s probably pretty evident to most why you’d want to use TLS these days,

SIP Secure – aka sips has been around for a long time and is supported by most SIP endpoints now.

Kamailio supports TLS, and it’s setup is very straightforward.

I’ve got a private key and certificate file for the domain nickvsnetworking.com so I’ll use those to secure my Kamailio instance by using TLS.

I’ll start by copying both the certificate (in my case it’s cert.pem) and the private key (privkey.pem) into the Kamailio directory. (If you’ve already got the private key and certificate on your server for another application – say a web server, you can just reference that location so long as the permissions are in place for Kamailio to access)

Next up I’ll open my Kamailio config (kamailio.cfg), I’ll be working with an existing config and just adding the TLS capabilities, so I’ll add this like to the config:

!define WITH_TLS

That’s pretty much the end of the configuration in kamailio.cfg, if we have a look at what’s in place we can see that the TLS module loads it’s parameters from a separate file;

#!ifdef WITH_TLS
# ----- tls params -----
modparam("tls", "config", "/etc/kamailio/tls.cfg")
#!endif

So let’s next jump over to the tls.cfg file and add our certificate and private key;

[server:default]
method = TLSv1
verify_certificate = yes
require_certificate = yes
certificate = fullchain.pem
private_key = privkey.pem

Boom, as simple as that,

After restarting Kamailio subscribers can now contact us via TLS using sips.

You may wish to disable TCP & UDP transport in favor of only TLS.

A note about CAs…

If you’re planning on rolling out SIP over TLS (sips) to existing IP phones it’s worth looking at what Certificate Authorities (CAs) are recognised by the IP phones.

As TLS relies on a trust model where a CA acts kind of like a guarantor to the validity of the certificate, if the IP phone doesn’t recognise the CA, it may see the certificate as Invalid.

Some IP phones for example won’t recognize Let’s Encrypt certificates as valid, while others may not recognize any of the newer CAs.

Vendor Yealink publishes a list of CAs their IP phones recognize, which could save you a lot of headaches when setting this up and buying certificates.

Kamailio Bytes – Nightly Releases the Lazy Way

Installing from source can be a headache,

If you’re running a Debian system, the Kamailio team provide nightly development builds as Debian packages that can be installed on Debian or Ubuntu systems using the apt package manager.

Installing is a breeze, first we just add the GPG key for the repo:

 wget -O- http://deb.kamailio.org/kamailiodebkey.gpg | sudo apt-key add -

Then it’s just a matter of adding the release to your /etc/apt/sources.list file.

I’m running Bionic, so I’ll add:

deb     http://deb.kamailio.org/kamailiodev-nightly bionic main
deb-src http://deb.kamailio.org/kamailiodev-nightly bionic main

Then just update and install the packages you require:

apt-get update
apt-get install kamailio*

For a full list of the Debian packages published check out the Debian package list:

https://deb.kamailio.org/

Where you can find the nightly builds and stable builds for each of the releases.

Enjoy!

Kamailio Bytes – Ansible for Automating Deployments

Despite the fact it’s 2020 there’s still a lot of folks in the world manually configuring boxes,

Ansible is a topic I could talk all day about, but in essence it’s kind of an automation framework, tell Ansible what to do one and it can spin you up two boxes, or two thousand boxes and manage the config on them.

I talked about DMQ, the Distributed Message Queue in a Kamailio Bytes post some time ago, and so as an example I’ll share an example playbook to Install Kamailio the lazy way from the Repos, and load the DMQ config with the IP Address and DMQ Address pulled from variables based on the host itself.

There’s a huge number of posts on installing and the basics of Ansible online, if you’re not familiar with Ansible already I’d suggest starting by learning the basics and then rejoining us.

The Hosts

Depending on if your hosts are running on bare metal, VMWare VMs or cloud based, I’m going to assume you’re working with a Debian system.

I’ve already got 3 servers ready to go, they’ve got sequential IP Addresses so I’ve added the range to my /etc/ansible/hosts file:

I’ve created the group kamailio and put the IP Address range 10.0.1.193 to 10.0.1.195 in there.

You will probably need to add the authentication info, such as passwords, private keys and privilege escalation details, but I’m going to assume you’ve already done that and you can run the ping module on each one:

ansible kamailio -m ping

Assuming that comes back OK and you can get into each one let’s move onto the Playbook.

The Playbook

There’s a few tasks we’ll get out of the way before we configure Kamailio,

The first of which is adding the Debian repo and the keys,

Next we’ll load a Kamailio config from a template that fills in our IP Address and Kamailio version, then we’ll install Kamailio,

Rather than talk you through each of the plays here’s a copy of my playbook:

---
- name: Configure Kamailio


  hosts: kamailio
  become: yes

  vars:
    kamailio_version: "53"
    debian_sources_dir: "/etc/apt/sources.list.d"

  tasks:



    - name: Add keys for Kamailio repo
      apt_key:
        url: http://deb.kamailio.org/kamailiodebkey.gpg
        state: present


    - name: Add repo to sources.list
      apt_repository:
        repo: deb http://deb.kamailio.org/kamailio{{kamailio_version}} {{hostvars[inventory_hostname]['ansible_lsb']['codename']}} main
                #The full list of Debian repos can be found at http://deb.kamailio.org/
                #The version is based off the versions listed there and the release is based on the codename of the Debian / Ubuntu release.
        state: present


    - name: Copy Config Template
                #Copies config from the template, fills in variables and uplaods to the server
      template:
        src: kamailio.cfg.j2
        dest: /etc/kamailio/kamailio.cfg
        owner: root
        group: root
        backup: yes
      register: config_changed

    - name: Install Kamailio
                #Updates cache (apt-get update) and then installs Kamailio
      apt:
        name: kamailio
        update_cache: yes
        state: present
      register: kamailio_installed_firstrun

    - name: Restart Kamailio if config changed
      service:
       name: kamailio
       state: restarted
      when: config_changed.changed

    - name: Start Kamailio if installed for the first time
      service:
       name: kamailio
       state: started
      when: kamailio_installed_firstrun.changed

Should be pretty straight forward to anyone who’s used Ansible before, but the real magic happens in the template module. Let’s take a look;

Kamailio config in Jinja2 template

Pusing out static config is one thing, but things like IP Addresses, FQDNs and SSL certs may differ from machine to machine, so instead of just pushing one config, I’ve created a config and added some variables in Jinja2 format to the config, that will be filled with the value on the target when pushed out.

In the template module of the playbook you can see I’ve specified the file kamailio.cfg.j2 this is just a regular Kamailio config file but I’ve added some variables, let’s look at how that’s done.

On the machine 10.0.1.194 we want it to listen on 10.0.1.194, we could put list 0.0.0.0 but this can lead to security concerns, so instead let’s specify the IP in the Jinja config,

listen=udp:{{ ansible_default_ipv4.address }}:5060
listen=tcp:{{ ansible_default_ipv4.address }}:5060
listen=udp:{{ ansible_default_ipv4.address }}:5090

By putting ansible_default_ipv4.address in two sets of curly brackets, this tells Ansible to fill in thes values from the template with the Ansible IPv4 Address of the target machine.

Let’s take a look on the 10.0.1.194’s actual kamailio.cfg file:

Let’s take another example,

To keep DMQ humming it makes sense to have different DMQ domains for different versions of Kamailio, so in the Kamailio config file template I’ve called the variable kamailio_version in the DMQ address,

This means on a Kamailio 5.2 version this URL look like this on the boxes’ config:

# ---- dmq params ----
modparam("dmq", "server_address", "sip:10.0.1.194:5090")
modparam("dmq", "notification_address", "sip:dmq-53.nickvsnetworking.com:5090")

Running It

Running it is just a simple matter of calling ansible-playbook and pointing it at the playbook we created, here’s how it looks setting up the 3 hosts from their vanilla state:

The great thing about Kamailio is it’s omnipotent – This means it will detect if it needs to do each of the tasks specified in the playbook.

So if we run this again it won’t try and add the repo, GPG keys, install Kamailio and load the template, it’ll look and see each of those steps have already been done and skip each of them.

But what if someone makes some local changes on one of the boxes, let’s look at what happens:

Likewise now if we decide to change our config we only need to update the template file and Ansible will push it out to all our machines, I’ve added a comment into the Kamailio template, so let’s run it again and see the config pushed out to all the Kamailio instances and them restarting.

Hopefully this gives you a bit more of an idea of how to manage a large number of Kamailio instances at scale, as always I’ve put my running code on GitHub, Ansible Playbook (configure_kamailio.yml) and Kamailio Jinja config template (kamailio.cfg.j2)

Kamailio Bytes – Python + SIP with KEMI

In my last post I talked about using KEMI in Kamailio and how you can integrate in a different programming language to handle your SIP request handling in a language you already know – Like Python!

So in this post I’ll cover the basics of how we can manage requests and responses from Kamailio in Python, if you haven’t already read it, go back to last weeks post and get that running, it’s where we’ll start off.

The Framework

Before we get too excited there’s some boilerplate we’ve got to add to our Python script, we need to create a class called kamailio and populate the class by defining some functions, we’ll define an __init__ to handle loading of the class, define a child_init for handling child processes, define ksr_request_route to handle the initial requests. We’ll also need to define a mod_init – outside of the Kamailio class to initialize the class.

import sys
import Router.Logger as Logger
import KSR as KSR

import requests

# global function to instantiate a kamailio class object
# -- executed when kamailio app_python module is initialized
def mod_init():
    KSR.info("===== from Python mod init\n");
    return kamailio();


# -- {start defining kamailio class}
class kamailio:
    def __init__(self):
        KSR.info('===== kamailio.__init__\n');


    # executed when kamailio child processes are initialized
    def child_init(self, rank):
        KSR.info('===== kamailio.child_init(%d)\n' % rank);
        return 0;


    # SIP request routing
    # -- equivalent of request_route{}
    def ksr_request_route(self, msg):
        KSR.info("===== request - from kamailio python script\n");
        KSR.dbg("method " + KSR.pv.get("$rm") + " r-uri " + KSR.pv.get("$ru"))

Most of these should be pretty self explanatory for anyone who’s done a bit more in-depth Python programming, but it’s no big deal if you don’t understand all this, the only part you need to understand is the ksr_request_route function.

ksr_request_route: translates to our request_route{} in the Kamailio native scripting language, all requests that come in will start off in this part.

Python Kamailio Routing

So let’s start to build upon this, so we’ll blindly accept all SIP registrations;

...
    # SIP request routing
    # -- equivalent of request_route{}
    def ksr_request_route(self, msg):
        KSR.info("===== request - from kamailio python script\n");
        KSR.dbg("method " + KSR.pv.get("$rm") + " r-uri " + KSR.pv.get("$ru"))


        if KSR.is_method("REGISTER"):
                KSR.sl.send_reply(200, "Sure")

Here you’ll see we’ve added an if statement, as if we were doing any other If statement in Python, in this case we’re asking if the KSR.is_method(“REGISTER”), and if it is, we’ll send back a 200 OK response.

Let’s pause and talk about KSR

All the Kamailio bits we’ll use in Python will have the KSR. prefix, so let’s take a quick break here to talk about KSR. The KSR. functions are the KEMI functions we’ve exposed to Python.

Without them, we’re just writing Python, and we’d have to do all the functions provided by Kamailio nativeley in Python, which would be crazy.

So we leverage the Kamailio modules you know and love from Python using Python’s logic / programming syntax, as well as opening up the ability to pull in other libraries from Python.

There’s a full (ish) list of the KEMI functions here, but let’s talk about the basics.

Let’s look at how we might send a stateless reply,

There’s a module function to send a stateless reply;

 KSR.sl.send_reply(200, "OK")

The vast majority of functions are abstracted as module functions, like the example above, but not all of them.

So every function doesn’t need to be wrapped up as a module, there’s also a way to call any function that you’d call from the native scripting language, wrapped up, kind of like an Exec command:

KSR.x.modf("sl_send_reply", "200", "OK");

So thanks to this we can call any Kamailio function from Python, even if it’s not explicitly in the KEMI abstraction.

Python Kamailio Routing (Continued)

So earlier we managed REGISTER requests and sent back a 200 OK response.

What about forwarding a SIP Request to another proxy? Let’s follow on with an elif statement to test if the method is an INVITE and statelessly forward it.

        elif KSR.is_method("INVITE"):
                #Lookup our public IP address
                try:
                    ip = requests.get('https://api.ipify.org').text
                except:
                    ip = "Failed to resolve"

                #Add that as a header
                KSR.hdr.append("X-KEMI: I came from KEMI at " + str(ip) + "\r\n");

                #Set host IP to 10.1.1.1
                KSR.sethost("10.1.1.1");

                #Forward the request on
                KSR.forward()

Now an incoming SIP invite will be proxied / forwarded to 10.1.1.1, all from Python.

But so far we’ve only done things in KEMI / Python that we could do in our native Kamailio scripting language, so let’s use some Python in our Python!

I utterly love the Python Requests library, so let’s use that to look up our public IP address and add it as a header to our forwarded SIP INVITE;

        elif KSR.is_method("INVITE"):
                #Lookup our public IP address
                try:
                    ip = requests.get('https://api.ipify.org').text
                except:
                    ip = "Failed to resolve"

                #Add that as a header
                KSR.hdr.append("X-KEMI: I came from KEMI at " + str(ip) + "\r\n");

                #Set host IP to 10.1.1.1
                KSR.sethost("10.1.1.1");

                #Forward the request on
                KSR.forward()

(For anyone pedantic out there, Kamailio does have an HTTP client module that could do this too, but Requests is awesome)

So let’s have a look at our forwarded request:

Bottom header is the X-KEMI custom header we included with our public IP

So let’s wrap this up a bit and handle any other request that’s not an INVITE or a REGISTER, with a 500 error code.

    # SIP request routing
    # -- equivalent of request_route{}
    def ksr_request_route(self, msg):

        KSR.dbg("method " + KSR.pv.get("$rm") + " r-uri " + KSR.pv.get("$ru"))


        if KSR.is_method("REGISTER"):
            KSR.sl.send_reply(200, "OK")

        elif KSR.is_method("INVITE"):
                #Lookup our public IP address
                try:
                    ip = requests.get('https://api.ipify.org').text
                except:
                    ip = "Failed to resolve"

                #Add that as a header
                KSR.hdr.append("X-KEMI: I came from KEMI at " + str(ip) + "\r\n");

                #Set host IP to 10.1.1.1
                KSR.sethost("10.1.1.1");

                #Forward the request on
                KSR.forward()
        else:
               KSR.sl.send_reply(500, "Got no idea...")

I’ve put my full code on GitHub which you can find here.

Kamailio Bytes – UAC for Remote User Registration to external SIP Server (Originating SIP REGISTER)

I’ve talked about using the UAC module, but as promised, here’s how we can use the UAC module to send SIP REGISTER requests to another SIP server so we can register to another SIP proxy.

Let’s say we’re using Kamailio to talk to a SIP Trunk that requires us to register with them so they know where to send the calls. We’d need to use Kamailio UAC module to manage SIP Registration with our remote SIP Trunk.

But Kamailio’s a proxy, why are we sending requests from it? A proxy just handles messages, right?
Proxies don’t originate messages, it’s true, and Kamailio can be a proxy, but with the UAC module we can use Kamailio as a Client instead of a server. Keep in mind Kamailio is what we tell it to be.

Getting Started

Before we can go spewing registrations out all over the internet we need to start by getting a few things in place;

First of which is configuring UAC module, which is something I covered off in my last post,

We’ll also need to have a database connection in place, again I’ve covered off connecting to a MySQL database in Kamailio here.

Once we’ve got that done we’ll need to tell the UAC module our IP Address for the from address for our Contact field, and the database URL of what we’ve setup.

modparam("uac", "reg_contact_addr", "192.168.1.99:5060")
modparam("uac", "reg_db_url", "mysql://kamailio:kamailiorw@localhost/kamailio")

I haven’t used a variable like DBURL for the database information, but you could.

Finally a restart will see these changes pushed into Kamailio.

/etc/init.d/kamailio restart

This is the end of the Kamailio config side of things, which you can find on my GitHub here.

Defining the Registration parameters

Once we’ve got a database connection in place and UAC module loaded, then we can configure an entry in the uacreg table in the database, in my example I’m going to be registering to an Asterisk box on 192.168.1.205, so I’ll insert that into my database:

mysql> INSERT INTO `uacreg` VALUES (NULL,'myusername','myusername','192.168.1.205','myusername','192.168.1.205','asterisk','myusername','mypassword','','sip:192.168.1.205:5060',60,0,0);

Note: If you’re using a later version of Kamailio (5.4+) then the DB schema changes and you may want something like this:

insert into uacreg values ('', 'myusername', 'myusername', 'mydomain', 'myusername', 'mydomain', 'asteriskrealm', 'myusername', 'mypassword', '', 'sip:remoteproxy.com:5060', 60, 0, 0, 0)

Having a look at the fields in our table makes it a bit clearer as to what we’ve got in place, setting flags to 0 will see Kamailio attempt registration. Make sure the auth_proxy is a SIP URI (Starts with sip:) and leave the auth_ha1 password empty as we haven’t calculated it.

mysql> SELECT * FROM 'uacreg' \G
            id: 2
        l_uuid: myusername
    l_username: myusername
      l_domain: 192.168.1.205
    r_username: myusername
      r_domain: 192.168.1.205
         realm: asterisk
 auth_username: myusername
 auth_password: mypassword
      auth_ha1:
    auth_proxy: sip:192.168.1.205:5060
       expires: 60
         flags: 0
     reg_delay: 0

Putting it into Play

After we’ve got our database connection in place, UAC module configured and database entries added, it’s time to put it into play, we’ll use Kamcmd to check it’s status:

kamcmd> uac.reg_reload
kamcmd> uac.reg_dump

Unfortunately from Kamcmd we’re not able to see registration status, but Sngrep will show us what’s going on:

From Sngrep we can see the REGISTRATION going out, the authentication challenge and the 200 OK at the end.

Make sure you’ve got your Realm correct, otherwise you may see an error like this:

RROR: {2 10 REGISTER [email protected]} uac [uac_reg.c:946]: uac_reg_tm_callback(): realms do not match. requested realm: [localhost]

If you’re not familiar with the SIP Registration process now’s a good time to brush up on it by having a read of my post here. – “What is a SIP Registrar?”
